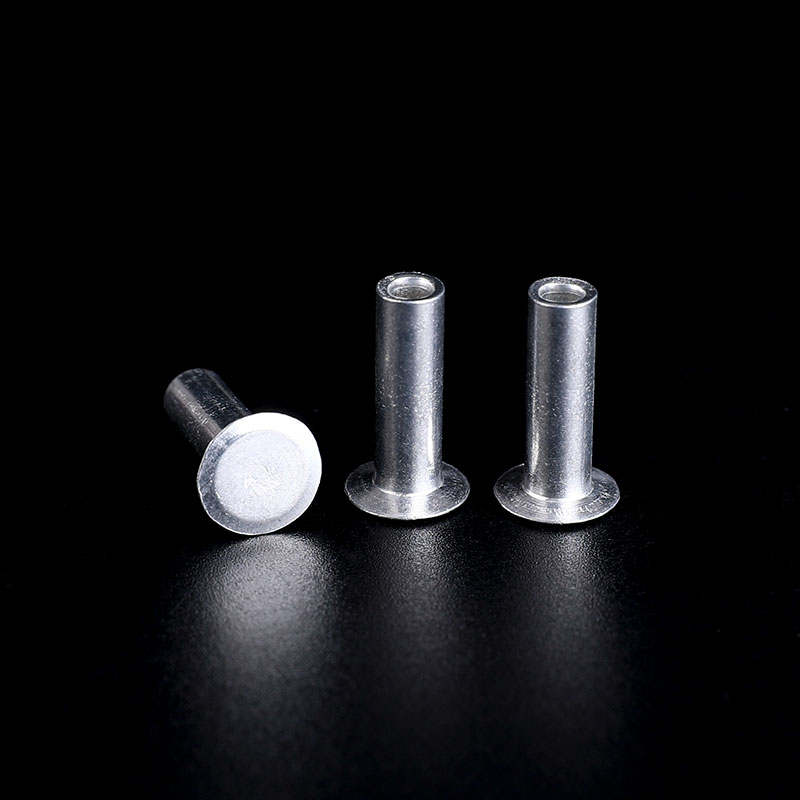

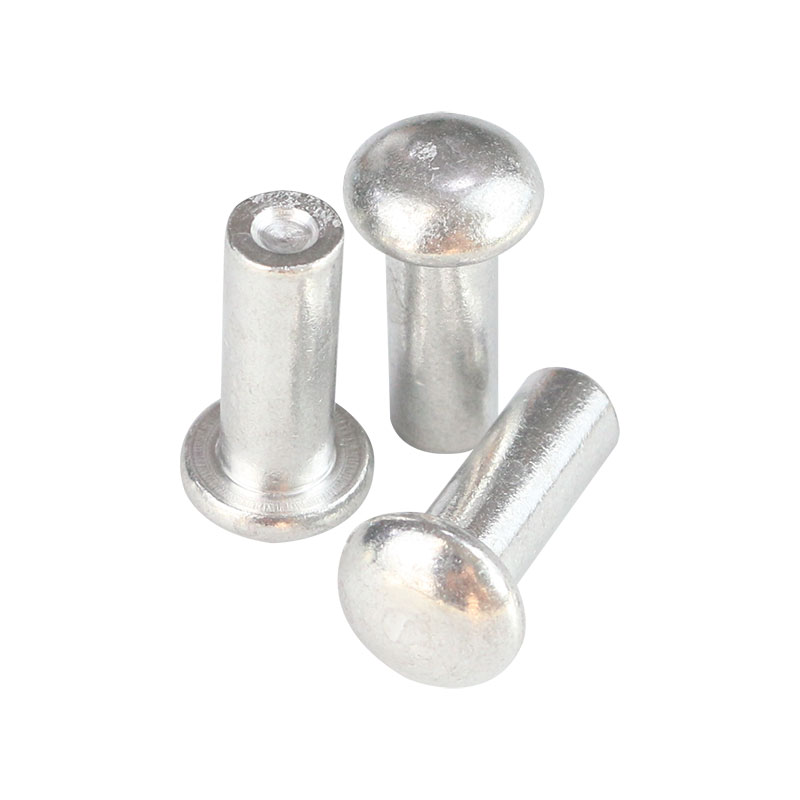

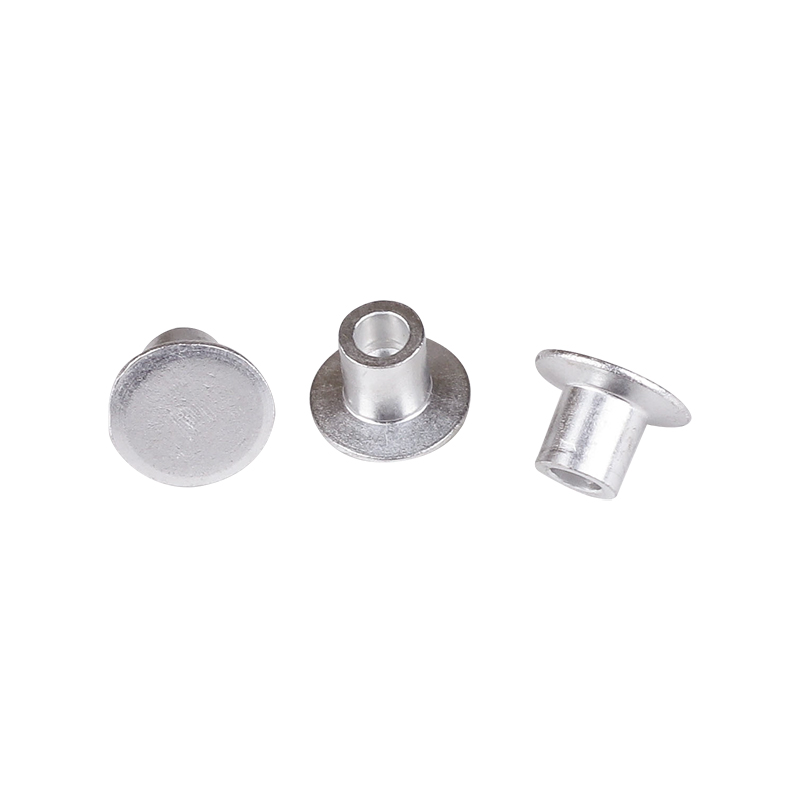

Aluminum Semi-Tubular Rivets Manufacturers

● Aluminum Semi-Tubular Rivets is made of the aluminum material. It can be used in many applications. They are commonly used in brake lining, clutch button, clutch facing, hardware tools, and other industries. Semi Tubular rivets are set by deforming the hole formed in the end of the shank of the rivet. This can be done using a hand held punch or in high volume applications, fully automatically using a purpose built riveting machine. The correct specification of the rivet is the key to a successful application. The load is stronger than that of hollow rivet, which is mainly used for riveting occasions with little load.

● We support customized and can also manufacture non-standard fasteners according to your drawings.

Shank Diameter

  2-18mm

Head Type

  Flat Head,Oval Head Round Head , Countersunk Head, Round Cone Head and so on, as customer requires

Standard

   BS 3575, DIN 7338, ANSI B 18.7 and so on

Raw Material

  Aluminum 1060, 5050, 6063

Surface finish

  Natural color

ABOUT US
Taizhou First Rivet Co.,Ltd.
As a famous Aluminum Semi-Tubular Rivets Suppliers and Aluminum Semi-Tubular Rivets Manufacturers,Taizhou First Rivet Co.,Ltd. founded in 1991, is a specializes in researching, developing, producing and selling bolts and rivets manufacturers and factory. It covers an area of 13,834 square meters and has convenient transportation.

Leave a Message

LATEST NEWS

Our main customers are domestic first-class and second-class OEM suppliers, and our automobile hollow rivets and other products are exported to
Europe, America,the Middle East, Africa, Southeast Asia and more than 20 countries.

How Hollow Rivets Enhance Aircraft Performance and Safety?

14-06-2024

In the aviation industry, the quest for excellence in performance and safety is a relentless pursuit. One of the key innovations that has significantly contributed to this endeavor...

The Role of Hollow Rivets in Automotive Manufacturing

07-06-2024

In the fast-paced and ever-evolving world of automotive manufacturing, innovation is the key to staying ahead of the competition. One such innovation that has revolutionized the in...

The Versatility and Importance of Hex Head Bolts in Modern Engineering

31-05-2024

When it comes to the world of fasteners, hex head bolts stand out as a versatile and essential component in modern engineering. These bolts, characterized by their hexagonal-shaped...

Advancements in Hex Head Bolt Design and Materials

24-05-2024

The hex head bolt, a fundamental fastening element in the vast machinery of modern industry, has been the subject of significant innovation and development. As the backbone of coun...

Industry Knowledge Extension

How Does Installing Semi-tubular Aluminum Rivets Differ from Solid Rivets?

The installation process for aluminum semi-tubular rivets differs from that of solid rivets in several ways. Here are some of the key differences:

(1)Pre-Drilled Holes: One of the main differences between the installation process for aluminum semi-tubular rivets and solid rivets is that the former require pre-drilled holes in the materials being joined. Solid rivets, on the other hand, are installed by driving them through both materials simultaneously.

(2)Flaring the Rivet: Another difference is that aluminum semi-tubular rivets are not fully flared like solid rivets. Instead, the rivet is partially flared using a rivet setter. The flared end of the rivet expands to fill the hole and create a permanent joint, while the other end remains open.

(3)Tooling: The tooling used to install aluminum semi-tubular rivets differs from that used for solid rivets. Semi-tubular rivets require a specialized tool called a rivet setter. This tool is designed to flare the end of the rivet while also preventing it from collapsing.

(4)Material Thickness: The installation process for aluminum semi-tubular rivets is also influenced by the thickness of the materials being joined. Thicker materials may require a longer rivet shaft to ensure a secure joint.

(5)Strength: Solid rivets typically provide a stronger joint than semi-tubular rivets. However, semi-tubular rivets can still provide a strong and durable joint when properly installed.

Factors for Selecting Aluminum Semi-tubular Rivet Size and Style

When selecting the appropriate size and style of aluminum semi-tubular rivet for a particular application, there are several factors that should be considered. These factors include:

(1)Material Thickness: The thickness of the materials being joined is a critical factor when selecting a rivet. The diameter of the rivet should be chosen to ensure that it fits snugly into the hole without being too loose or too tight.

(2)Grip Range: The grip range of the rivet refers to the thickness of the materials being joined. The length of the rivet shaft should be chosen to ensure that it can pass through both materials and provide adequate grip.

(3)Head Style: There are several head styles to choose from when selecting an aluminum semi-tubular rivet, including countersunk, oval, and truss. The head style should be chosen based on the specific requirements of the application.

(4)Material Compatibility: The material compatibility of the rivet is an important consideration when selecting a rivet for a particular application. Aluminum semi-tubular rivets are ideal for use with soft materials like plastic or thin metal sheets.

(5)Environmental Factors: The environment in which the application will be used is another important consideration when selecting a rivet. Factors such as temperature, humidity, and exposure to chemicals or corrosive materials should be taken into account.

(6)Load Capacity: The load capacity of the rivet should also be considered when selecting a rivet. The strength of the joint should be sufficient to withstand the anticipated load without failure.

(7)Quantity: The quantity of rivets required for a particular application should also be taken into account. The cost and availability of the rivets should be considered when determining the appropriate quantity.

What Are The Advantages Of Using Aluminum Semi-Tubular Rivets?

Aluminum semi-tubular rivets offer several advantages.

(1)Aluminum semi-tubular rivets are lightweight, making them ideal for applications where weight reduction is crucial.

(2)Aluminum semi-tubular rivets are also easier to install compared to solid rivets, requiring less force.

(3)Aluminum semi-tubular rivets' tubular portion allows for expansion, accommodating slight variations in hole sizes.

(4)Aluminum semi-tubular rivet has inherent corrosion resistance properties, making semi-tubular rivets suitable for certain environments.

(5)These aluminum semi-tubular rivets are commonly used in industries such as automotive, aerospace, electronics, and furniture manufacturing, where their lightweight nature, ease of installation, and ability to join thin materials make them a preferred choice.
