Copper Clutch Facing Company

 The main materials of this series consist of ordinary medium-alkali (alkali-free) glass fiber, hybrid fibers, 4 -7 pieces of copper wire of composite cloth, imported styrene-butadiene rubber 1502, high decomposition phenolic resin and organic friction modifier.
 The products adopt the traditional rubber impregnation technology. Due to the high copper content, the mechanical strength and wear resistance are greatly improved. It can be applied to various types of cars, especially heavy truck. The clutch working life can be increased greatly also.

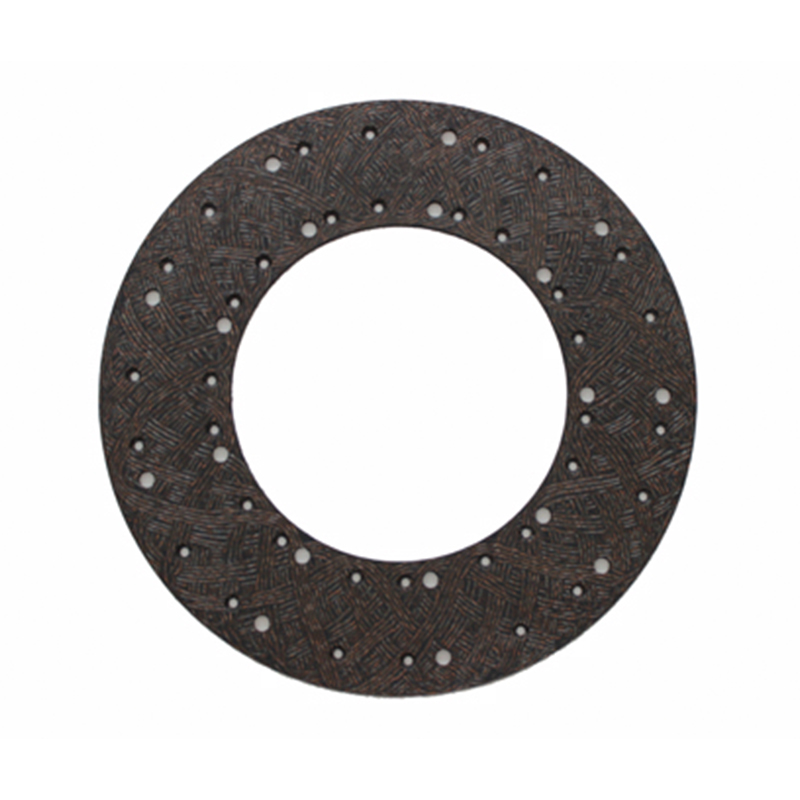

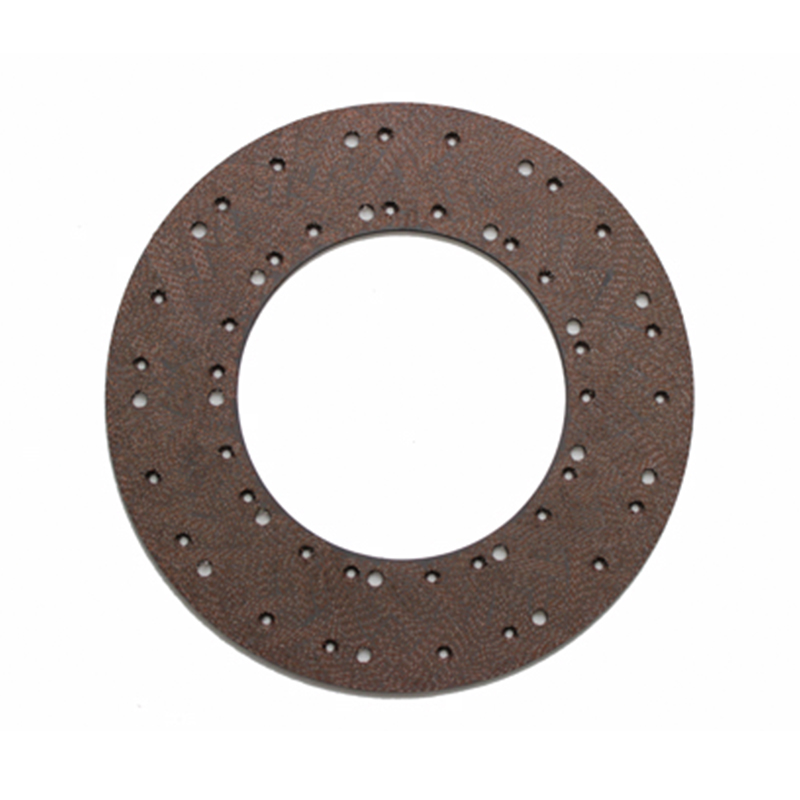

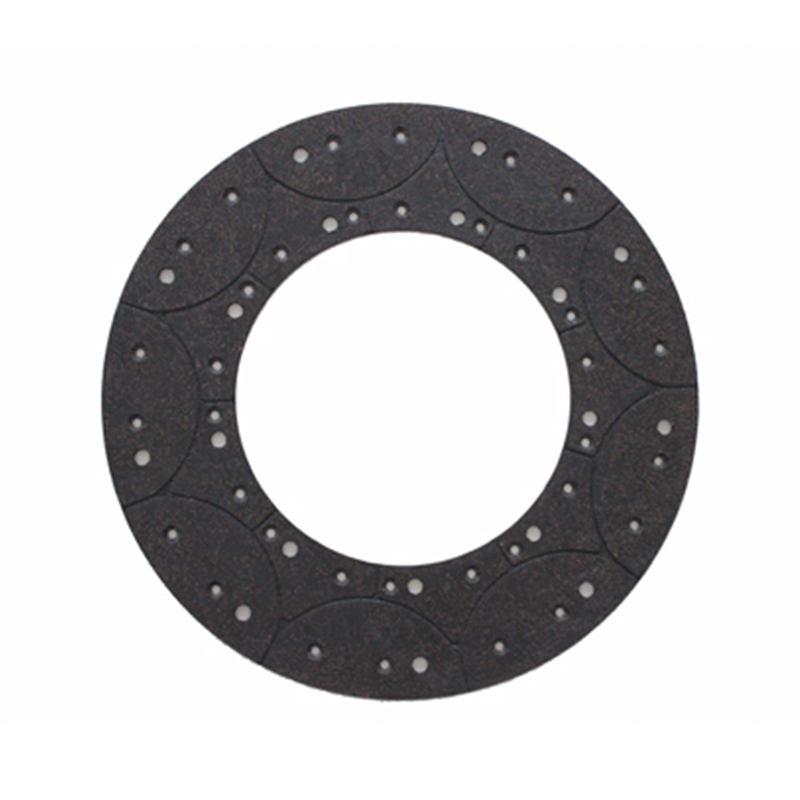

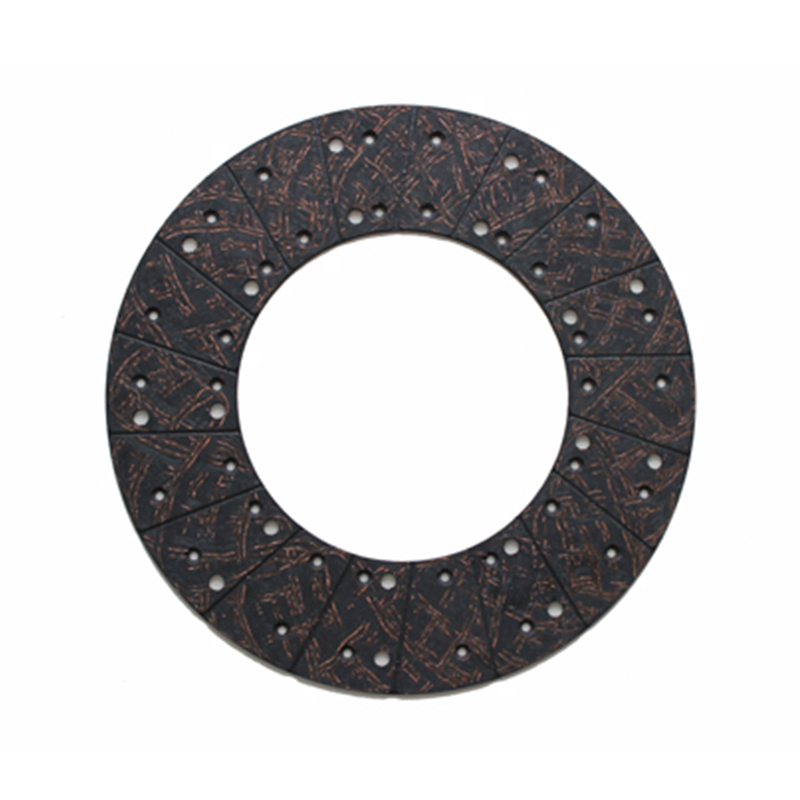

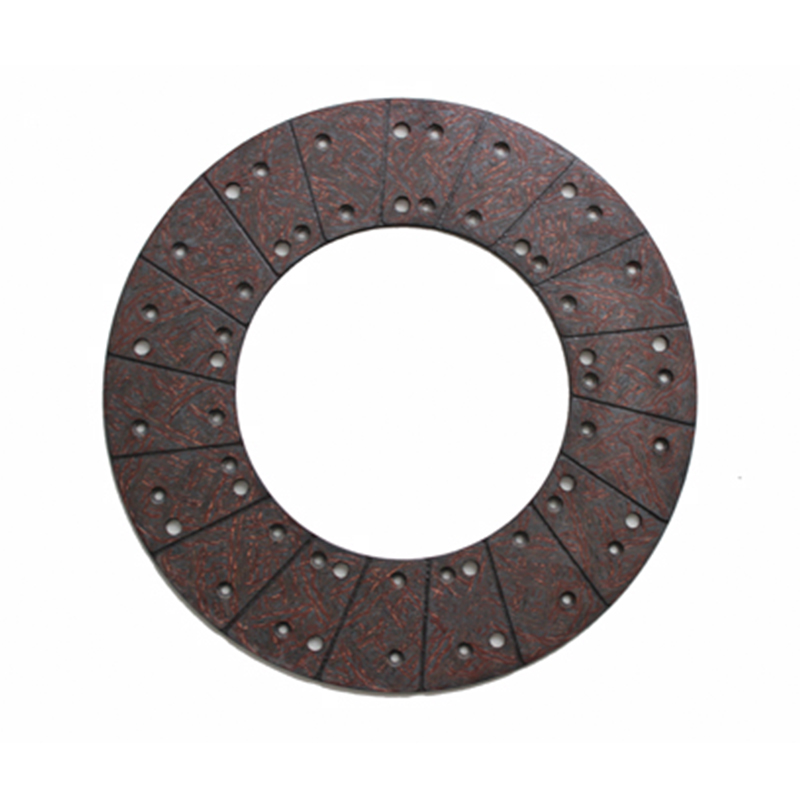

 The main varieties include: FST109, FST189, FST706, FST806, etc.

The Main Performance Index
1. Density: 2.00±0.1g/cm2
2. Hardness: HRL40-90
3. Bending strength≥50 (N/mm2), Maximum strain ≥15 (10-3mm/mm).
4. Friction and Wear Properties meet the demand of the below table:

Temperrature ℃

100

150

200

250

300

More 100

Friction Coefficient(μ)

0.45±0.07

0.45±0.08

0.45±0.09

0.45±0.10

0.45±0.11

0.45±0.07

Wear Rate (v) 10-7cm3 (N.m)

≤0.15

≤0.20

≤0.25

≤0.28

≤0.32

/



ABOUT US
Taizhou First Rivet Co.,Ltd.
As a famous Copper Clutch Facing Manufacturers and Copper Clutch Facing Company,Taizhou First Rivet Co.,Ltd. founded in 1991, is a specializes in researching, developing, producing and selling bolts and rivets manufacturers and factory. It covers an area of 13,834 square meters and has convenient transportation.

Leave a Message

LATEST NEWS

Our main customers are domestic first-class and second-class OEM suppliers, and our automobile hollow rivets and other products are exported to
Europe, America,the Middle East, Africa, Southeast Asia and more than 20 countries.

How Hollow Rivets Enhance Aircraft Performance and Safety?

14-06-2024

In the aviation industry, the quest for excellence in performance and safety is a relentless pursuit. One of the key innovations that has significantly contributed to this endeavor...

The Role of Hollow Rivets in Automotive Manufacturing

07-06-2024

In the fast-paced and ever-evolving world of automotive manufacturing, innovation is the key to staying ahead of the competition. One such innovation that has revolutionized the in...

The Versatility and Importance of Hex Head Bolts in Modern Engineering

31-05-2024

When it comes to the world of fasteners, hex head bolts stand out as a versatile and essential component in modern engineering. These bolts, characterized by their hexagonal-shaped...

Advancements in Hex Head Bolt Design and Materials

24-05-2024

The hex head bolt, a fundamental fastening element in the vast machinery of modern industry, has been the subject of significant innovation and development. As the backbone of coun...

Industry Knowledge Extension

What are the Advantages of Using Copper Clutch Facing over Other Materials?

Copper clutch facing offers several advantages over other materials, making it a popular choice for various applications. Here are the key advantages of using copper clutch facing:

(1)High Friction Coefficient: Copper clutch facing exhibits a high friction coefficient, which ensures excellent gripping power and torque transmission. It provides strong and reliable engagement, allowing for efficient power transfer from the engine to the drivetrain. The high friction coefficient contributes to smooth clutch engagement and disengagement, enhancing the overall performance and drivability of the vehicle.

(2)Superior Heat Dissipation: Copper is known for its exceptional thermal conductivity, making copper clutch facing highly effective at dissipating heat generated during clutch operation. The ability to efficiently transfer heat away from the clutch facings helps prevent excessive temperature rise, reducing the risk of thermal damage and ensuring consistent performance even in high-stress operating conditions.

(3)Excellent Wear Resistance: Copper clutch facing exhibits excellent wear resistance, making it highly durable and long-lasting. The material can withstand the friction and mechanical forces encountered during clutch engagement and disengagement without significant wear or degradation. This results in extended clutch life, reduced maintenance, and cost savings over time.

(4)Versatility: Copper clutch facing is suitable for a wide range of applications and operating conditions. It can be used in both dry and oil-immersed clutch systems, offering versatility and compatibility with different clutch designs. Copper clutch facings can be found in various vehicles, including cars, motorcycles, trucks, and industrial equipment.

(5)Consistent Performance: Copper clutch facing provides consistent performance throughout its lifespan. The material maintains its frictional characteristics, ensuring reliable clutch engagement and disengagement over time. This consistency allows for precise and predictable clutch operation, enhancing driver control and overall vehicle performance.

(6)Resistance to Glazing and Fading: Copper clutch facing is less prone to glazing or fading compared to other materials. Glazing occurs when the clutch facing becomes smooth and polished, reducing its frictional properties. Copper facings have a natural ability to resist glazing, maintaining their frictional performance and preventing a loss of clutch effectiveness.

(7)Compatibility with High-Torque Applications: Copper clutch facing is well-suited for high-torque applications due to its high friction coefficient and durability. It can handle the increased torque demands of heavy-duty vehicles and performance-oriented applications, ensuring reliable power transmission and extended clutch life.

What is the Expected Lifespan of Copper Clutch Facing?

The expected lifespan of a copper clutch facing can vary depending on various factors, including the specific application, driving conditions, maintenance practices, and overall clutch system design. While it is challenging to provide an exact lifespan, several factors can influence the durability and longevity of copper clutch facings. Here are some key considerations:

(1)Driving Style: The way the vehicle is driven can have a significant impact on the lifespan of the clutch facing. Aggressive driving habits, such as frequent rapid acceleration, high RPM clutch slipping, or excessive clutch engagement, can accelerate wear and reduce the lifespan of the clutch facing. On the other hand, smooth and controlled driving, avoiding unnecessary clutch slippage, and proper shifting techniques can help extend the clutch facing's lifespan.

(2)Load and Usage: The load and usage conditions placed on the clutch system affect the wear and tear on the clutch facing. Vehicles used for heavy-duty applications or towing tend to place more strain on the clutch system, potentially reducing the lifespan of the clutch facing. Similarly, stop-and-go city driving or constant engagement and disengagement of the clutch can contribute to faster wear. Lighter usage and consistent driving conditions can help prolong the clutch facing's lifespan.

(3)Maintenance: Proper maintenance practices play a crucial role in extending the lifespan of a copper clutch facing. Regular inspections and maintenance of the clutch system, including adjusting clutch pedal free play and ensuring proper lubrication of mechanical components, can help optimize clutch performance and prevent premature wear. It is also important to address any issues promptly, such as fluid leaks, that may affect the clutch system's operation and cause excessive wear on the clutch facing.

(4)Quality of Materials: The quality and composition of the copper clutch facing itself can impact its lifespan. Clutch facings made from high-quality materials, manufactured with precision and adherence to industry standards, tend to offer better durability and longevity. It is advisable to source copper clutch facings from reputable manufacturers known for producing reliable and durable clutch components.

(5)Environmental Factors: Environmental conditions can influence the lifespan of a copper clutch facing. Extreme temperatures, excessive moisture, and exposure to corrosive substances can affect the clutch facing's performance and contribute to accelerated wear. Operating the vehicle in severe conditions, such as off-road environments or areas with heavy dust or dirt, can also impact the clutch facing's lifespan.

Considering these factors, the expected lifespan of a copper clutch facing can vary widely. Generally, a well-maintained and properly operated clutch system with a copper clutch facing can last anywhere from 50,000 to 100,000 miles or more. However, it is essential to note that this is a rough estimate, and the actual lifespan can differ depending on the factors mentioned earlier.
