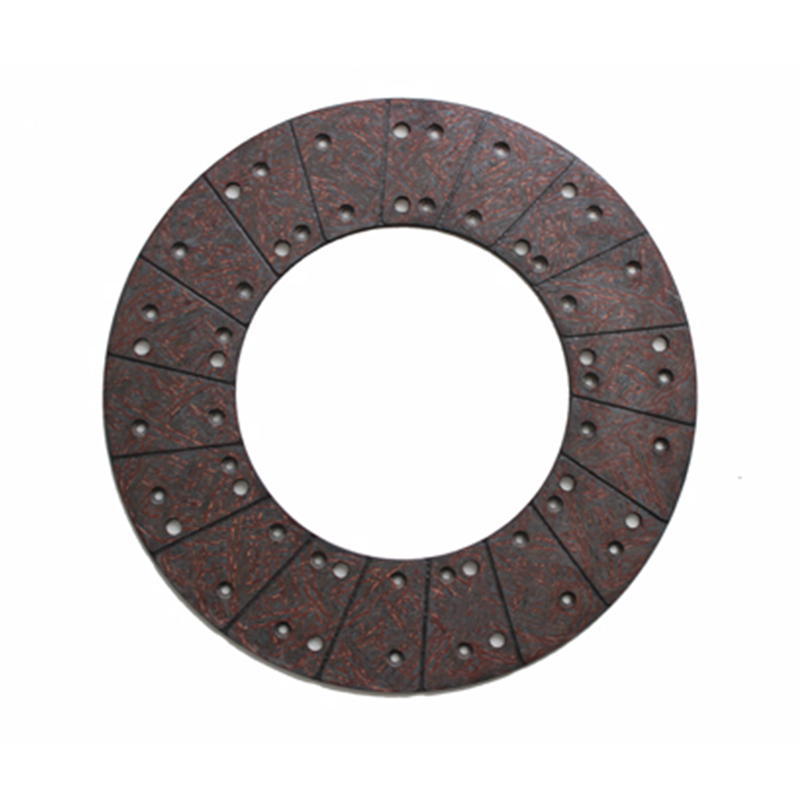

Copper Clutch Facing FST708

Copper Clutch Facing FST708

E-mail:[email protected]

Product Details

Environment
Environment
Environment
Environment
Environment
Environment
Environment
Environment
Environment
Environment
Environment
Environment

 The main materials of this series consist of ordinary medium-alkali (alkali-free) glass fiber, hybrid fibers, 4 -7 pieces of copper wire of composite cloth, imported styrene-butadiene rubber 1502, high decomposition phenolic resin and organic friction modifier.
 The products adopt the traditional rubber impregnation technology. Due to the high copper content, the mechanical strength and wear resistance are greatly improved. It can be applied to various types of cars, especially heavy truck. The clutch working life can be increased greatly also.
 The main varieties include: FST109, FST189, FST706, FST806, etc.

The Main Performance Index
1. Density: 2.00±0.1g/cm2
2. Hardness: HRL40-90
3. Bending strength≥50 (N/mm2), Maximum strain ≥15 (10-3mm/mm).
4. Friction and Wear Properties meet the demand of the below table:

Temperrature ℃

100

150

200

250

300

More 100

Friction Coefficient(μ)

0.45±0.07

0.45±0.08

0.45±0.09

0.45±0.10

0.45±0.11

0.45±0.07

Wear Rate (v) 10-7cm3 (N.m)

≤0.15

≤0.20

≤0.25

≤0.28

≤0.32

/
